Servers

Here you can find all the server information.

Server Room:

The keys for the server room are in the secretary office, in the locker behind the door, in a small wooden box. They are labeled with “Server Raum”. Please turn off the lights and lock the door when leaving the server room.

More specific information about each server.

Purpose: Development and operating system images from other servers

iDRAC

• MAC: 14:18:77:45:AE:53
• IP: 10.0.0.2, Subnet: 255.0.0.0, Gateway: 0.0.0.0, No DNS

Network Interface em1

• Name: devimg01.cm.in.tum.de
• Device: Embedded NIC.1-1-1, MAC: 14:18:77:45:AE:4F
• IP: 131.159.24.137

Network interface 10 Gigabit

• Device: NIC.Slot.3-1-1, Operating system device: p3p1
• IP: 10.0.0.1, Subnet: 255.255.0.0
• Do not use: 255.0.0.0 otherwise the LRZ backup node is unreachable

Purpose: Testbed for RIFE (testbed01) and LLCM/SSICLOPS (testbed02) projects We have two testbed servers that are completely identical.

Management interface (Dell iDRAC)

• MAC: 14:18:77:45:A1:CB
• IP: 10.100.0.1, Subnet: 255.0.0.0, Gateway: 0.0.0.0, No DNS

Network interface em1

• Name: testbed01.cm.in.tum.de
• Device: Embedded NIC.1-1-1, MAC: 14:18:77:45:A1:C7
• IP: 131.159.24.142

Network interface 10 Gigabit

• Device: NIC.Slot.2-1-1, Operating system device: p2p1
• P: 10.0.0.2, Subnet: 255.255.0.0

Virtualization with two machines

Management interface (Dell iDRAC)

• MAC: 14:18:77:45:AA:8D
• IP: 10.100.0.2, Subnet: 255.0.0.0, Gateway: 0.0.0.0, No DNS

Network interface em1

• Name: testbed02.cm.in.tum.de
• Device: Embedded NIC.1-1-1, MAC: 14:18:77:45:AA:89
• IP: 131.159.24.150

Network interface 10 Gigabit

• Device: NIC.Slot.2-1-1, Operating system device: p2p1
• IP: 10.0.0.3, Subnet: 255.255.0.0

The net first three servers have a external graphic card for offloading experimentation/tests. All three have a

To see if the graphic card is installed use the following command:

sudo lspci -v | grep "S7000" -A 17 -B 2

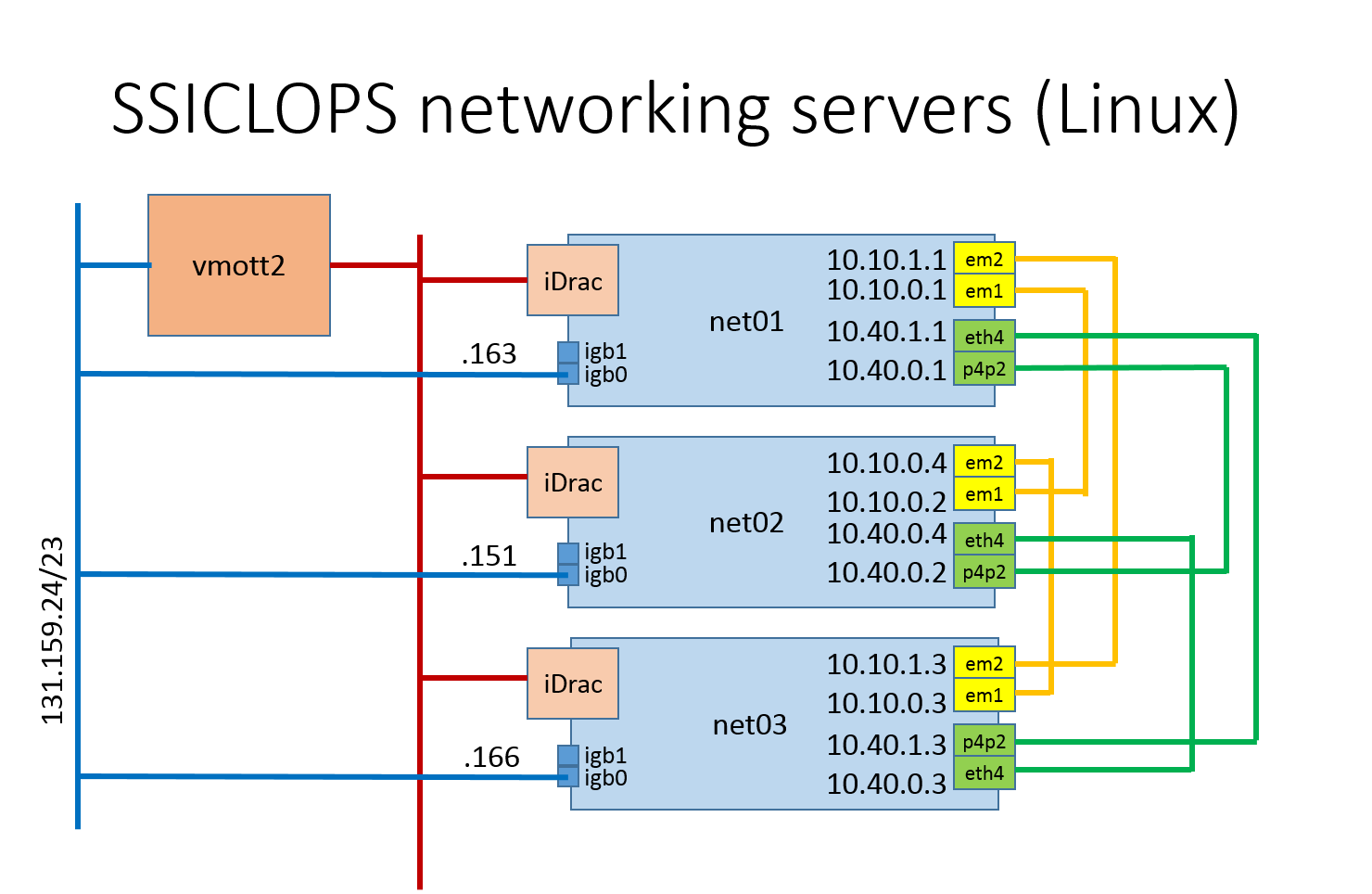

There are three servers for network and performance tests.

The next two net server have FPGA network cards installed:

These are the specifications of the two servers dedicated to offloading tests.

Both servers have two 120GB SSD - the first thought was to create a RAID-1 with the SSDs but as mentioned in several discussions, there is a very high chance that the SSDs will fail at the same time in RAID-1. So we left one SSD that is not used currently. If the system SSD fails we can create a new virtual disk (iDrac) with the remaining SSD and do a quick new install with MAAS.

Purpose: Simulation server

Management interface (Dell iDRAC)

• MAC: 14:18:77:5F:C2:6D
• IP: 10.250.0.1, Subnet: 255.0.0.0, Gateway: 0.0.0.0, No DNS

Network interface eno3

• Name: sim01.cm.in.tum.de
• Device: Embedded NIC.1-3-1, MAC: 24:6E:96:13:9E:5C
• IP: 131.159.24.15

Purpose: Emulation server

There are also some servers in the chair server room, which are equipped with graphics cards for machine learning purposes etc.

This section/chapter describes the network part.

• Making server ready for access via the network
• Find MAC Address in the iDrac

If you go to the server room make notes about the network configuration/how the cables are patched on the back side. Each Port has a small name or number next to it.

• There is always one iDrac interface - the rbg-network group should patch this interface in our server management network (VLan132, accessible from vmott2)
• There is always one cable to the chair network - the rbg-network group should patch this one in our chair network (131.159.24.0/23) this cable is often connected to the Integrated Network Card
• The Integrated Network Device/Card has four Ports
  • On the iDrac webinterface they are called NIC.Integrated - with each Port behind it (e.g. NIC.Integrated.1-1-1, NIC.Integrated.1-2-1, etc.)
  • From these four ports, sometimes the first two ports are replaced with a better network card
  • Very often the chair network cable is plugged into the third Integrated Network Port
• Any additional network cards or slots have other names in the iDrac interface

After you found out to which Port the chair network cable connects you can simply look the Mac Address up on the iDraw webinterface

Another way to check if the link is up and the mac address of the device, is to connect directly via ssh to the server management interface. For this step the iDrac interface address needs to be set and ping should work.

1. Connect to vmott2

   ssh paulth@cm-mgmt.in.tum.de

2. From there connect to the wished iDrac interface (table in Overview chapter)

   #example with sim01
   ssh root@10.250.0.1
   #password is the same as for the webinterface - password safe

3. Now you can use different commands to check the interfaces

With the nicstatistics command you can find out if the link is up or not, but only works if the server is running.

This section describes how to setup vlan tagging on the servers.

sudo apt install vlan
sudo modprobe 8021q
sudo install bridge-utils
sudo vim /etc/network/interfaces
# content of interfaces file (only ubuntu < 18.04)
#--------------------------
# real hardare interface
auto eno1
iface eno1 inet dhcp

# vlan interface
auto eno1.83
iface eno1.83 inet manual
  vlan-raw-device eno1
  vlan_id 83

# bridge interface to vlan
auto chair
iface chair inet dhcp
  bridge_ports eno1.93
  bridge_fd 15
#-------------------------
sudo ifup eno1
sudo ifup eno1.83
sudo ifup chair

Every server has at least one management network interface. We have our own server management VLAN to administrate the servers. There is one central gateway where admins can log in and from there reach the server management interfaces, via the second network interface of the gateway.

• VLAN address space: 10.0.0.0/8
• RBG intern VLAN name: VLan132 il11_management
• Gateway: vmott2 (131.159.24.136)
  • Name: cm-mgmt.informatik.tu-muenchen.de
  • Login: ssh

Procedure to administrate servers, check status, install new os, etc:

1. New Server only: Go to the server room and set static ip address via buttons on server
   • Choose one IP from the Management Network: 10.0.0.0/8
   • Subnet-Mask: 255.0.0.0
   • Gateway: Not necessary → 0.0.0.0 (not allowed by iDrac, choose 10.0.0.0)
   • DNS: off
2. Log in on vmott2 via ssh

   ssh paulth@cm-mgmt

3. Ping static iDrac interface address, no response:
   • wrong settings on server (ip, subnet-mask, dns)
   • wrong VLAN on iDrac interface → rbg network group ask if they can patch the management in our management network (VLan 132).
4. Log off from vmott2, now you can open a SOCKS5 proxy connection to vmott2, from there you have access to the iDrac webinterface of all servers

    ssh -ND 8080 paulth@cm-mgmt.in.tum.de

   • Type the command into your terminal, if the cursors stops after your password the connection is successful
   • Configure the proxy in your browser, Firefox:Preferences→Advanced→Network→Connection:Settings→Manual Proxy - ONLY Socks Host:localhost Port:8080→ OK
   • Now you can reach every server via

     https://<iDrac-interface-ip-address>
     #example (sim01)
     https://10.250.0.1

   • The login is root and the password can be found in our password safe
5. OTHER POSSIBILITY: Log off from vmott2 and make an ssh tunnel to access a specific iDrac webinterface

   sudo ssh -L 443:SERVER-IP:443 -L 5900:SERVER-IP:5900 -L 5901:SERVER-IP:5901 USER@cm-mgmt.in.tum.de

After that you can open the iDrac web interface by typing: https://localhost into your web browser.

The racadm tool can be used in two ways:

1. SSH into the idrac
2. Install racadm package on Dell server, use it locally for this server (local) or control remote idrac interfaces (remote)

The racadm package throws errors if installed on non Dell server, but racadm binary is successfully downloaded under /opt/dell/srvadmin/bin/idracadm7. Even though it is idracadm7 it also works for iDrac8 and is the newest version (9.3.0). Use the following commands to set up a working remote racadm environment on a non-dell Server. Commands work for Ubuntu 18.04 only!! Have a look at current versions.:

sudo su
echo "deb http://linux.dell.com/repo/community/openmanage/930/bionic bionic main" > /etc/apt/sources.list.d/linux.dell.com.sources.list
gpg --keyserver-options http-proxy=http://proxy.in.tum.de:8080 --keyserver pool.sks-keyservers.net --recv-key 1285491434D8786F
gpg -a --export 1285491434D8786F | sudo apt-key add -
sudo apt update
# instasll packets - libssl required for ssl connection to idrac
sudo apt install libssl-dev srvadmin-idracadm8
sudo cp /opt/dell/srvadmin/bin/idracadm7 /root/
sudo ln -sf /root/idracadm7 /usr/bin/racadm
# remove broken package installation
sudo apt purge srvadmin-base srvadmin-hapi srvadmin-idracadm7

1. Maas can install the operating system with a few clicks
2. Log in to the dashboard: http://mon01-cm.informatik.tu-muenchen.de:5240/MAAS
3. Restart the server with PXE enabled on the network card interface connected to the brocade switch and in network internal, vlan_133
4. The server should show up on the “Nodes” tab with a randomly selected name
5. To Commission the server (prepare server) and finally Deploy it (boot and install OS) the power settings have to be set

1. To shutdown and start servers a new user is created on iDrac
2. TODO user creation commands iDRAC
3. After the user is created power settings have to be set in MAAS
4. In order to reach the iDrac a route has to be established on mon01

   ip route add 10.200.0.0/24 via 131.159.24.136

5. On vmott2 a NAT needs to be configured to forward packets from MAAS to the according server

   #uncomment in /etc/sysctl.conf
   net.ipv4.ip_forward = 1
   # iptables NAT - rewrite all incoming packets from MAAS to internal vmott2 interface
   sudo iptables -t nat -A POSTROUTING -s 131.159.24.39 -j SNAT --to-source 10.0.0.1

If the server has the enterprise license the image can be mounted virtually from the iDrac interface. With the Express or any other license a boot stick/CD needs to be prepared and mounted manually down in the server room.

1. Log in on the iDrac webinterface -more information
2. Virtual console → Start virtual console (next to options) → Java application is downloaded and executed, make sure that you have java runtime environment installed and activated for browser content.
3. In the console window → Virtual Device→Conncet virtual device → console window again→Virtual Device→Assign DVD/CD→Choose: Now choose the wished image→Assign device
4. After choosing the image you have to set the boot option: Console window → Next start → virtual DVD/CD/ISO
5. Now you have to restart/power on the server: Console window → Power → System on

1. After mounting the boot image and choosing the image as next boot option, restart the server over the iDrac interface
2. Now the normal operating system installation dialog should show up
3. Configure the general operating system settings as shown below
4. After that go to the next section - OS configuration.

1. Language: English
2. Install Ubuntu Server
3. Select a language: English - English
4. Country, territory or area: other→Europe→Germany
5. Country to base default locale settings: United States - en_US.UTF-8
6. Keyboard Layout: choose as you wish, most of the time English(US)
7. Choose network interface: select the interface of the configured chair network interface, more information in the server administration chapter
8. Autoconfiguration
9. Choose hostname: server name / rbg-hostname (default if autoconfiguration successful) without the cm, example → sim01-cm = sim01
10. User Full name: i11
11. User account: i11
12. Password: min 12 digits with numbers, big-small letters and special character, safe in password safe, more in chapter Passwords
13. Encrypt home directory: No (Depends on purpose)
14. Setting up clock: Automatically, if not choose timezone
15. Time zone: Europe/Berlin
16. Try umount disks that are in us: yes
17. Partition disks: Manual
18. Partition menu: go down to the disk with free space→create a new partition→size:max→type:primary
19. Partition settings: use as: ext4, mount point: /, bootable flag: off → Done setting up the partition
20. Finish partitioning and write changes to disk
21. No Swap, continue without swap
22. Write changes to disk: Yes
23. Installing the system: automatic
24. System upgrades: Install security updates automatically
25. Software: System Utilities + Openssh Server (choose with space, enter to confirm)
26. After installation unmount iso image and restart server

1. Language: English
2. Install Ubuntu
3. Installation Type: Erase disk and install Ubuntu + Use LVM with the new Ubuntu installation
4. Where are you: Berlin
5. Keyboard Layout: English(US) - English(US)
6. Settings: Your name: i11, Your computer's name: <server-name> (e.g. emu01), Username: i11, Password: min 12 digits with numbers, big-small letters and special character, safe in password safe, more in chapter Passwords
7. After installation unmount iso image and restart server

In this chapter the configuration and integration of a linux server in our chair environment is described. The steps should be done in the following order:

1. Configure autofs for automatic filesystem mounts
2. LDAP authentification

1. Install autofs

   sudo apt-get install autofs

2. Edit /etc/auto.master:

   /- /etc/auto.direct

3. Create the file /etc/auto.direct

   /home       -fstype=nfs,defaults  nasil11.informatik.tu-muenchen.de:/srv/il11/home_il11
   /share      -fstype=nfs,defaults  nasil11.informatik.tu-muenchen.de:/srv/il11/share_il11

4. If necessary move existing home out of the way

   sudo mv /home /home.old

5. Reload autofs

   sudo service autofs restart

1. Install LDAP packages

   sudo apt-get install nslcd ldap-utils

2. Edit /etc/nslcd.conf, replce the respective lines:

   uri ldaps://ldapswitch.in.tum.de:636
   base ou=IN,o=TUM,c=de
   map passwd homeDirectory "/home/$uid"

3. Edit /etc/nsswitch.conf

   passwd:         files ldap
   group:          files ldap
   shadow:         files ldap

4. Update the nslcd service

   sudo update-rc.d nslcd enable

5. Automatically create home folders when logging in for the first time, edit /etc/pam.d/common-session

   session required        pam_mkhomedir.so skel=/etc/skel umask=0022

6. Add empty .Xauthority to the /etc/skel directory
7. Restrict access to groups, create a file /etc/login.group.allowed (0644), fill in the groups

   i11
   il11admin

8. To restrict to groups edit /etc/pam.d/common-auth, add to top of file

   auth    required                        pam_listfile.so onerr=fail item=group sense=allow file=/etc/login.group.allowed

9. When authentification failure, use the SSH pam_unix → first search ldap, then locally, edit /etc/pam.d/common-auth

   auth    sufficient                      pam_ldap.so try_first_pass
   auth    sufficient                      pam_unix.so nullok use_first_pass

10. Edit sudoers file for sudo access /etc/sudoers

    # Members of the LDAP group: il11admin get root privileges
    %il11admin ALL=(ALL) ALL

11. Allow password change from all servers
    • Edit /etc/pam.d/common-session

      session optional    pam_ldap.so

    • Edit /etc/pam.d/common-auth, remove the use_authtok, already done above

      auth  sufficient  pam_unix.so nullok use_first_pass

12. In the last step restart all authentification services and hope the best ;)

    #it will ask if you want to override the local changes -> choose no
    sudo pam-auth-update
    sudo service nscd stop
    sudo service nslcd restart

Here are all the files listed with content that were changed during the process:

Autofs

/share      -fstype=nfs,defaults  nasil11.informatik.tu-muenchen.de:/srv/il11/share_il11
#virtual machine
/home_i11   -fstype=nfs,defaults  nasil11.informatik.tu-muenchen.de:/srv/il11/home_il11
#server
/home       -fstype=nfs,defaults  nasil11.informatik.tu-muenchen.de:/srv/il11/home_il11

# Sample auto.master file
# This is an automounter map and it has the following format
# key [ -mount-options-separated-by-comma ] location
# For details of the format look at autofs(5).
#
/-      /etc/auto.direct
#
# NOTE: mounts done from a hosts map will be mounted with the
#       "nosuid" and "nodev" options unless the "suid" and "dev"
#       options are explicitly given.
#
#/net   -hosts
#
# Include /etc/auto.master.d/*.autofs
#
+dir:/etc/auto.master.d
#
# Include central master map if it can be found using
# nsswitch sources.
#
# Note that if there are entries for /net or /misc (as
# above) in the included master map any keys that are the
# same will not be seen as the first read key seen takes
# precedence.
#
+auto.master
/mount /etc/auto_mount -nosuid,noquota

Ldap

root
il11admin

# /etc/nslcd.conf
# nslcd configuration file. See nslcd.conf(5)
# for details.

# The user and group nslcd should run as.
uid nslcd
gid nslcd

# The location at which the LDAP server(s) should be reachable.
uri ldap://ldapswitch.informatik.tu-muenchen.de

# The search base that will be used for all queries.
base ou=IN,o=TUM,c=de

map passwd homeDirectory "/home_i11/$uid"

# The LDAP protocol version to use.
#ldap_version 3
...

# /etc/nsswitch.conf
#
# Example configuration of GNU Name Service Switch functionality.
# If you have the `glibc-doc-reference' and `info' packages installed, try:
# `info libc "Name Service Switch"' for information about this file.

passwd:         files ldap
group:          files ldap
shadow:         files ldap

hosts:          files dns
networks:       files

protocols:      db files
services:       db files
ethers:         db files
rpc:            db files

netgroup:       nis

...
# here are the per-package modules (the "Primary" block)
session [default=1]                     pam_permit.so
# here's the fallback if no module succeeds
session requisite                       pam_deny.so
# prime the stack with a positive return value if there isn't one already;
# this avoids us returning an error just because nothing sets a success code
# since the modules above will each just jump around
session required                        pam_permit.so
# The pam_umask module will set the umask according to the system default in
# /etc/login.defs and user settings, solving the problem of different
# umask settings with different shells, display managers, remote sessions etc.
# See "man pam_umask".
session optional                        pam_umask.so
# and here are more per-package modules (the "Additional" block)
session required        pam_unix.so
session [success=ok default=ignore]     pam_ldap.so minimum_uid=1000
session optional        pam_systemd.so
session required        pam_mkhomedir.so skel=/etc/skel umask=0022
# end of pam-auth-update config

...
# here are the per-package modules (the "Primary" block)
auth    required                        pam_listfile.so onerr=fail item=group sense=allow file=/etc/login.group.allowed

auth    sufficient                      pam_ldap.so try_first_pass
auth    sufficient                      pam_unix.so nullok use_first_pass
# here's the fallback if no module succeeds
auth    requisite                       pam_deny.so
# prime the stack with a positive return value if there isn't one already;
# this avoids us returning an error just because nothing sets a success code
# since the modules above will each just jump around
auth    required                        pam_permit.so
# and here are more per-package modules (the "Additional" block)
auth    optional                        pam_cap.so
# end of pam-auth-update config

#
# This file MUST be edited with the 'visudo' command as root.
#
# Please consider adding local content in /etc/sudoers.d/ instead of
# directly modifying this file.
#
# See the man page for details on how to write a sudoers file.
#
Defaults        env_reset
Defaults        mail_badpass
Defaults        secure_path="/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin"

# Host alias specification

# User alias specification

# Cmnd alias specification

# User privilege specification
root    ALL=(ALL:ALL) ALL

# Members of the LDAP group: il11admin get root privileges
%il11admin ALL=(ALL) ALL

# Members of the admin group may gain root privileges
%admin ALL=(ALL) ALL

# Allow members of group sudo to execute any command
%sudo   ALL=(ALL:ALL) ALL

# See sudoers(5) for more information on "#include" directives:

#includedir /etc/sudoers.d
%root   ALL=(ALL) NOPASSWD: ALL

....
# here are the per-package modules (the "Primary" block)
password        [success=2 default=ignore]      pam_unix.so obscure sha512
password        [success=1 default=ignore]      pam_ldap.so minimum_uid=1000 try_first_pass
# here's the fallback if no module succeeds
password        requisite                       pam_deny.so
# prime the stack with a positive return value if there isn't one already;
# this avoids us returning an error just because nothing sets a success code
# since the modules above will each just jump around
password        required                        pam_permit.so
# and here are more per-package modules (the "Additional" block)
# end of pam-auth-update config

1. Install ldap-utils and sssd:

   # apt install ldap-utils sssd

2. Edit the configuration file for sssd in /etc/sssd/sssd.conf:

   [sssd]
   config_file_version = 2
   services = nss, pam
   domains = LDAP

   [domain/LDAP]
   cache_credentials = true
   enumerate = false

   id_provider = ldap
   auth_provider = ldap

   ldap_uri = ldaps://ldap.in.tum.de:636
   ldap_search_base = ou=IN,o=TUM,c=DE
   ldap_network_timeout = 2

   entry_cache_timeout = 7776000

3. Change the files permission to 600, otherwise sssd will fail to start

   # chmod 600 /etc/sssd/sssd.conf

4. Disable NSCD caching for passwd, group and netgroup, as it would interfere with sssd caching. Change the following lines in /etc/nscd.conf :

   enable-cache    passwd    no
   enable-cache    group     no
   enable-cache    netgroup  no

5. configure NSS to get user and group information from sssd. To do this append sss to the passwd, group, shadow and sudoers line in /etc/nsswitch.conf:

   passwd:    files sss
   group:     files sss
   shadow:    files sss
   sudoers:   files sss

6. Put any groups you want to be able to login via LDAP in /etc/login.group.allowed. Do the same thing with individual users in /etc/login.user.allowed. Make sure both files exist, even if one of them may be empty.

   # echo il11 >> /etc/login.group.allowed
   # touch /etc/login.user.allowed

7. Change the permission of each file to 0644

   # chmod 0664 /etc/login.group.allowed
   # chmod 0664 /etc/login.user.allowed

8. Configure PAM to allow LDAP login
   • First edit /etc/pam.d/common-auth

     auth sufficient    pam_unix.so nullok
     auth sufficient    pam_sss.so use_first_pass
     auth requisite     pam_deny.so

   • To restrict users who are allowed to log in via ssh, add the following two lines to /etc/pam.d/sshd immediately before common-account is included:

     account [success=1 new_authtok_reqd=1 default=ignore]    pam_listfile.so onerr=fail item=group sense=allow file=/etc/login.group.allowed
     account required    pam_listfile.so onerr=fail item=user sense=allow file=/etc/login.user.allowed

   • Certain users should be granted sudo priviledges upon login. For those create entries in /etc/security/group.conf

     # members of il11admin are always granted sudo access
     *;*;%il11admin;Al0000-2400;adm
     # For other users create extra entries
     *;*;exampleuser;Al0000-2400;adm

   • In order for these rules to apply add the following line to /etc/pam.d/sshd and /etc/pam.d/login before common-auth is included

     auth optional           pam_group.so

   • Homedirectories should be created if not present. Add the following to /etc/pam.d/common-session

     session required    pam_mkhomedir.so skel=/etc/skel umask=0022

   • Also create an empty .Xauthority in /etc/skel

     # touch /etc/skel/.Xauthority

9. Finally update PAM (when asked if you wish to overwrite local changes choose no), restart NSCD and start sssd

   # pam-auth-update
   # service nscd restart
   # service sssd start

10. LDAP login is now enabled

1. Create a date folder under / with permission 777

   sudo mkdir /data && sudo chmod 777 /data

Fail2Ban is a intrusion prevention system. It bans IP addresses after too many login requests.

1. Install the fail2ban package

   sudo apt-get install fail2ban

2. Copy the template configuration file

   sudo cp /etc/fail2ban/jail.conf /etc/fail2ban/jail.local

3. Edit the configuration file and adjust settings

   sudo vim /etc/fail2ban/jail.local

   bantime=3600 # adjust value
   ...
   [sshd]
   enabled=true # add line

4. Restart fail2ban Service

   sudo service fail2ban restart

5. If wished E-Mail Notification can be enabled by setting parameters in the configuration file, make sure that sendmail is installed

   sudo vim /etc/fail2ban/jail.local

   destemail = root@mailschlichter.informatik.tu-muenchen.de
   ...
   action = %(action_mwl)s

- Show system information on ssh login, install landscape-common

sudo apt-get install landscap-common

For secure password storage we made a keepass file where all the passwords are stored. Ask the old/current administrator for the most recent password file.

• There is an admin user for every server called i11
• The password is the same for every server purpose - e.g. passwords are the same for all simulation server, emulation server and so on

• Network: 131.159.24.0/23
• Subnet mask: 255.255.254.0
• Broadcast: 131.159.25.255
• RBG-Network intern VLAN: VLan83

A new server has default login credentials for the iDrac interface:

• Login: root
• Password: calvin

• Domain Names: <host>.cm.in.tum.de
• Storage (secure storage, integrated or seperate and computation)
  • st01 – st<nn>
• Development
  • devimg01 – devimg<nn>
• Simulation
  • sim01 – sim<nn>
• Testbed (RIFE, SSICLOPS)
  • testbed01 – testbed<nn>
• Network Performance tests
  • net01 – net<nn>
• Emulation (VMs..)
  • emu01 – emu<nn>

A few weeks after the server hardware order the bill should arrive at the secretary office together with a TUM label. This label should be put on the respective servers. Follow the same position as already pasted in the server room. Together with the label put a paper with the server name (emu01) on each server. Print the server name (e.g. sim01.cm.in.tum.de) on a white paper (Libreoffice: Dejavu Sans, 12) and fix it with some sellotape.

1. Put TUM label on server, same position as on the other servers
2. Print white paper with server name + cm.in.tum.de (DejaVu Sans, 12) and fix it on the server next to TUM label

Commands to restart atschlichter3, grub is corrupted → restart ends up in a minimal bash environment.
Commands:

1. set root=md0
2. linux /vmlinuz root=/dev/md0
3. initrd /initrd.img
4. boot

The server should boot and is reachable via ssh.

The Dell servers can be booted with a platform specific bootable iso which updates all the server components automatically. It is recommended to do this once in a while as also hardware issues can be resolved with updating the firmware (e.g. RAM problems).
Ansible (semi-automatic):

• Download all bootable ISO images from the Dell support website (see manual process) and save them on the idrac-gtw:/srv/idrac-img/download/ (vmott22)
• Log in on AWX and execute the “infra - iDrac Update ISOs” playbook
• After that make sure nobody is using the according server and execute the “infra - iDrac Tasks” Playbook with limit set to the server and “Update iDrac” on true.
• Server will be offline during the update

Manual process:

• Download the server model specific iso from this website
• OR go to this website and enter the server Service-Tag, choose category “Systemverwaltung” search for “Platform Specific Bootable ISO” and download it
• Start the server iDrac management tool
• Mount the ISO image as a virtual CD, select Virtual CD as boot parameter and reboot the server
• Server should automatically boot into the ISO file and start the updates (can take up to 1 hour or more)
• After updates are finished boot the server into the same ISO, due to firmware dependencies the update should run twice as sometimes not all updates can be made in the first run
• After running the iso twice, iso can be unmounted and server rebooted into the hard drive
• Done
